Product Details
＋

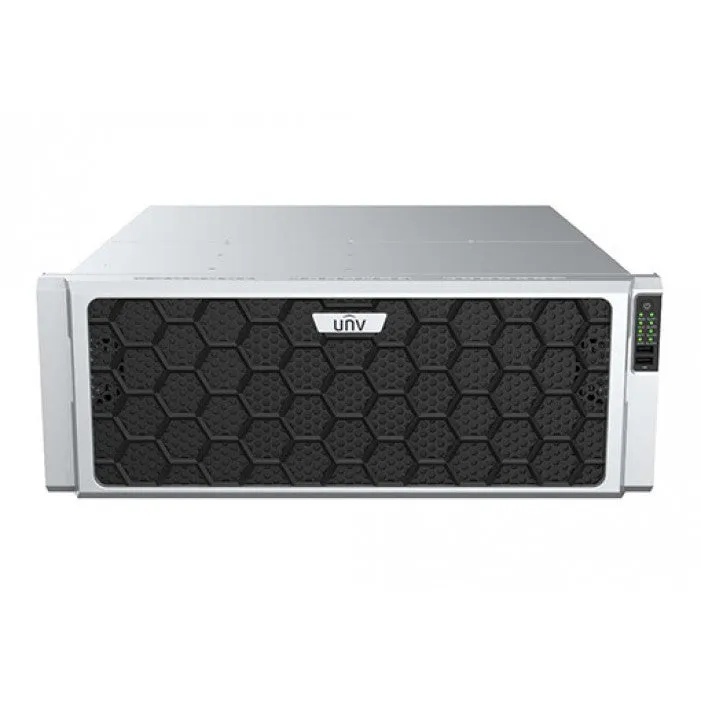

The NVR824-128R from Uniview is a 128 channel 24 HDDs RAID NVR, no HDD.
Features
- Support Ultra 265/H.265/H.264 video formats
- 128-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
- Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI1, HDMI2 and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Redundant power supply optional
- Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
- 24 SATA HDDs, up to 10TB for each HDD
- Support 2 miniSAS Interfaces
- Support 12V power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support N 1 Hot spare
| Product SKU | NVR824-128R |
|---|---|
| Brand | Uniview |
| Condition | New |
| NDAA Compliance | Yes |
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Compression Supported | Yes |
| Operating temperature | -10°C ~ 50°C ( 14°F ~ 122°F) |
| IP Channels | 128 Channels |
| Harddrive Size | No HDD |
| Protocols | Onvif Protocols, Uniview Protocols |
| Features | Audio, Compression Supported, H.264 Compression, H.265 Compression, HD Resolution, Supports the Full HD Output (HDMI), Two-way Audio |
| SATA | 24 SATA interfaces |
| Audio | 1-ch, RCA |
| Compression | Ultra 265, H.265, H.264 |
| Bandwidth | Incoming Bandwidth: 768Mbps, Outgoing Bandwidth: 768Mbps |
| Dimensions | 533mm ×484.6mm × 175.5mm (21.0 "×19.1" ×6.9") |
| Voltage | 100 ~ 240V AC |
| Power Consumption | ≤ 70 W (without HDD) |
| Network | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface |
| USB | Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0 |
| HD Resolution | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
