Product Details
＋

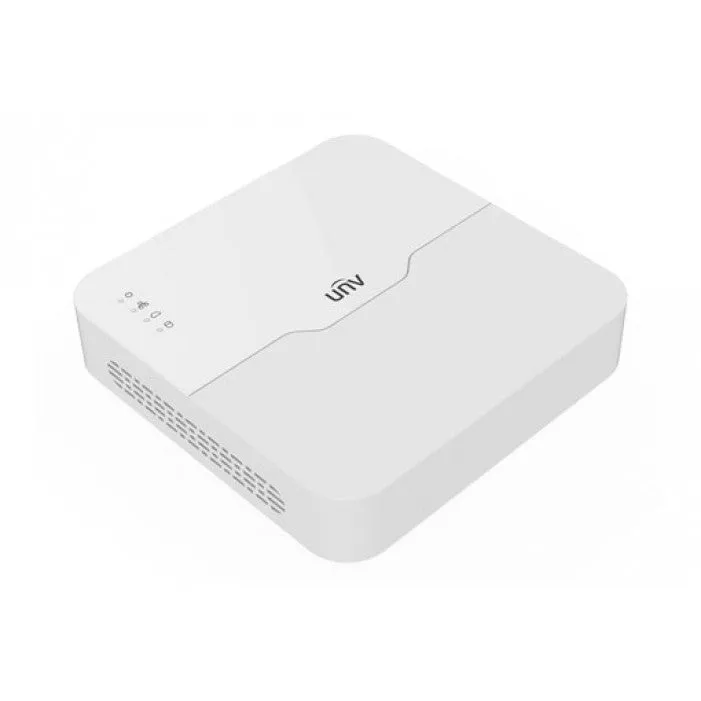

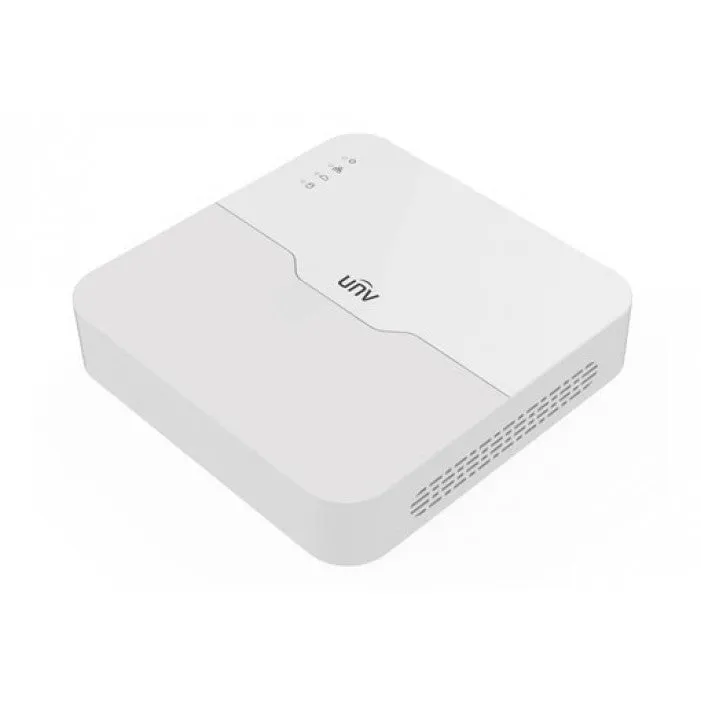

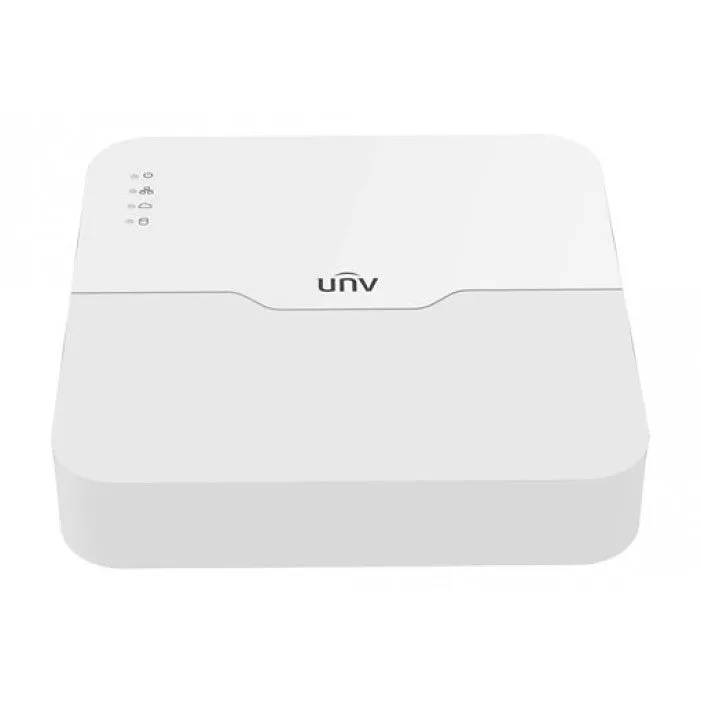

The NVR301-04LS3-P4 from Uniview is a 4 channels 1 SATA ultra 265/H.265/H.264 NVR, No HDD.
Features
- Support Ultra 265/H.265/H.264 video formats
- 4 channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD up to 6 TB
- Support cloud upgrade
| Product SKU | NVR301-04LS3-P4 |
|---|---|
| Brand | Uniview |
| Condition | New |
| NDAA Compliance | Yes |
| Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Compression Supported | Yes |
| Operating temperature | -10°C ~ 55°C ( 14°F ~ 131°F) |
| IP Channels | 4 Channels |
| Harddrive Size | No HDD |
| Protocols | Onvif Protocols, Uniview Protocols |
| Features | Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HDMI Output (720p/1080p) |
| SATA | 1 SATA interface |
| Audio | 1-ch, RCA |
| Compression | Ultra 265/H.265/H.264 |
| Bandwidth | Incoming Bandwidth: 64Mbps, Outgoing Bandwidth: 48Mbps |
| Dimensions | 205mm × 205mm × 46mm (8.1"×8.1"×1.8 ") |
| Voltage | 48V DC |
| Power Consumption | ≤9 W |
| Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 x USB2.0 |
| H.264 Compression | Yes |
| DDNS Functionality | Yes |
| HDMI Output (720p/1080p) | Yes |
| H.265 Compression | Yes |
