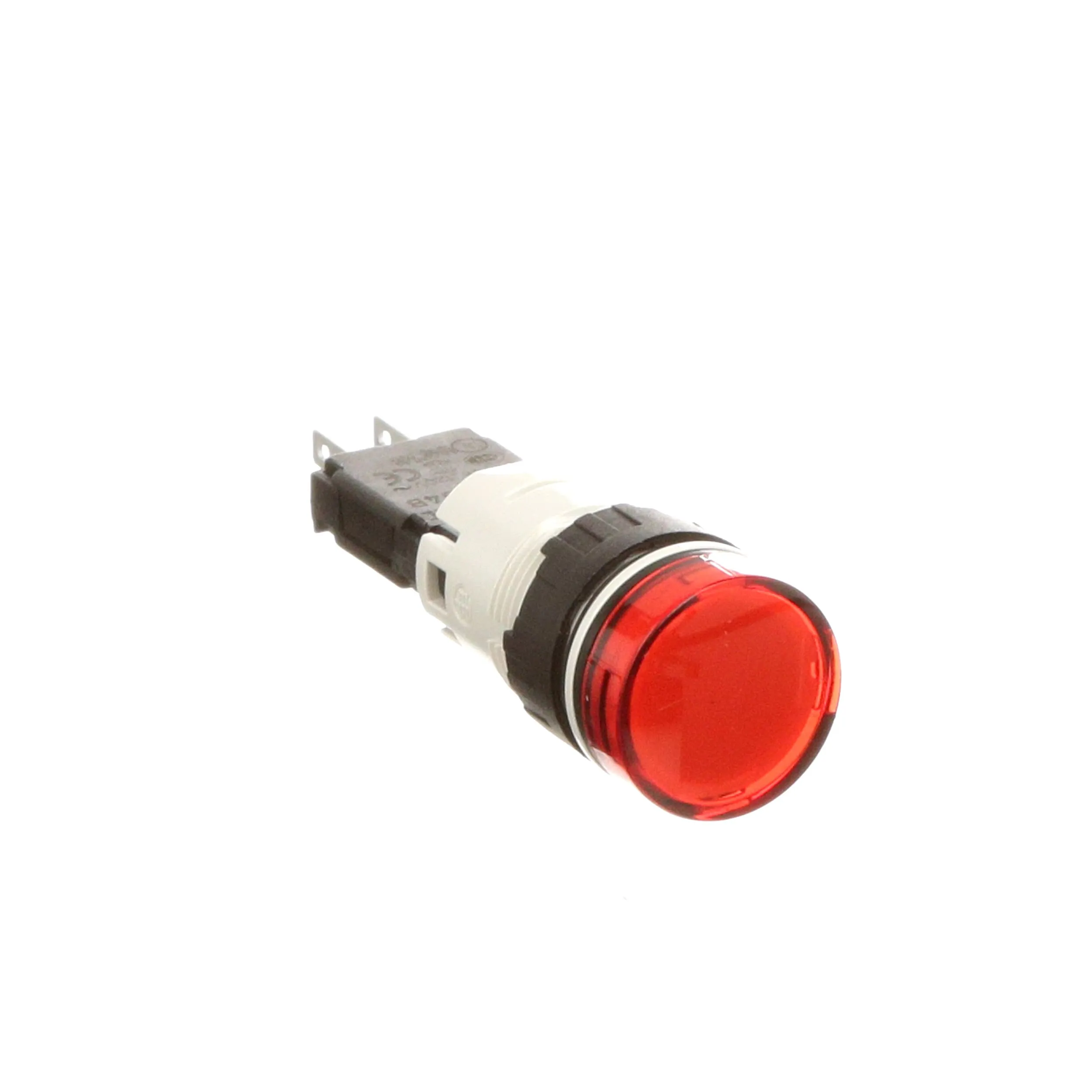

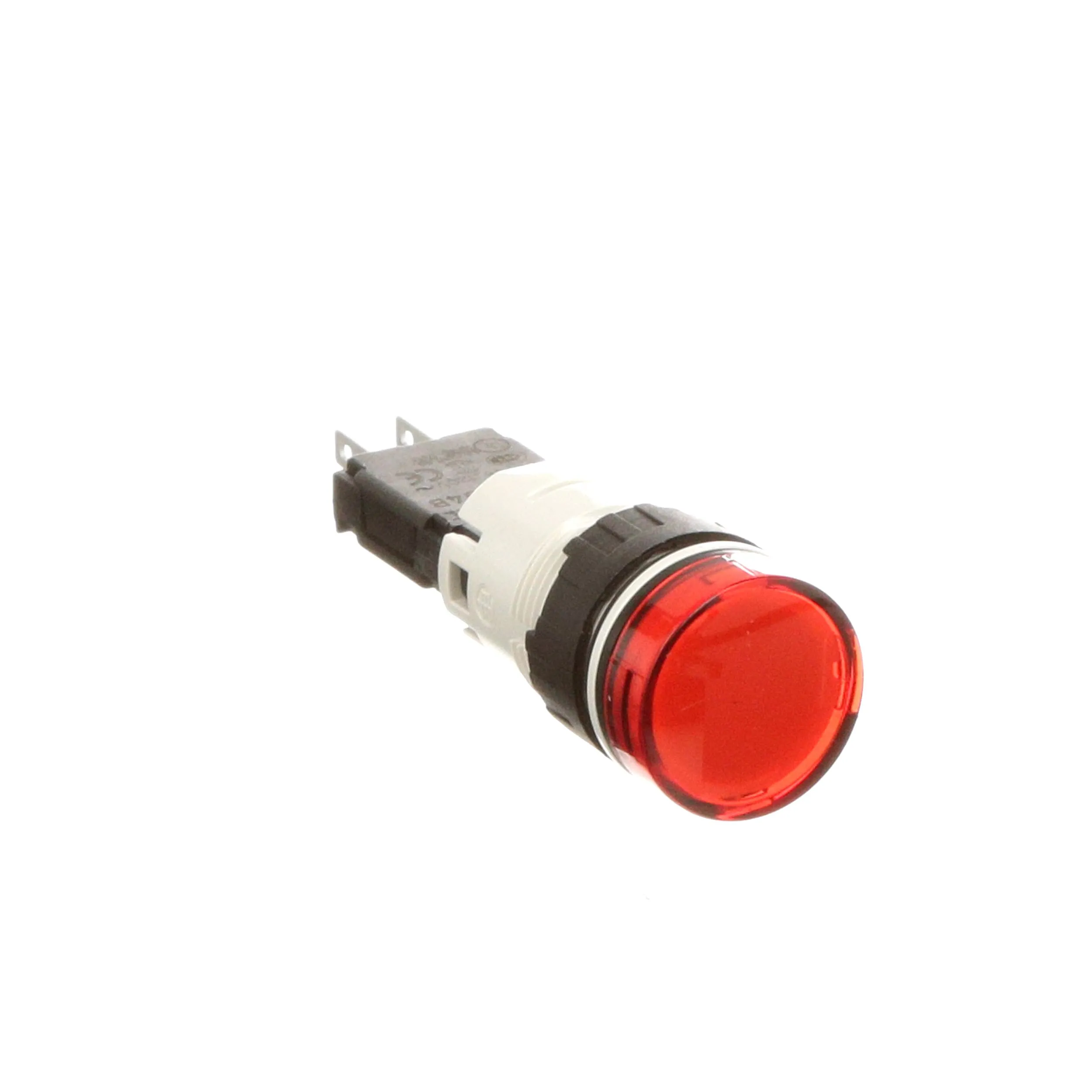

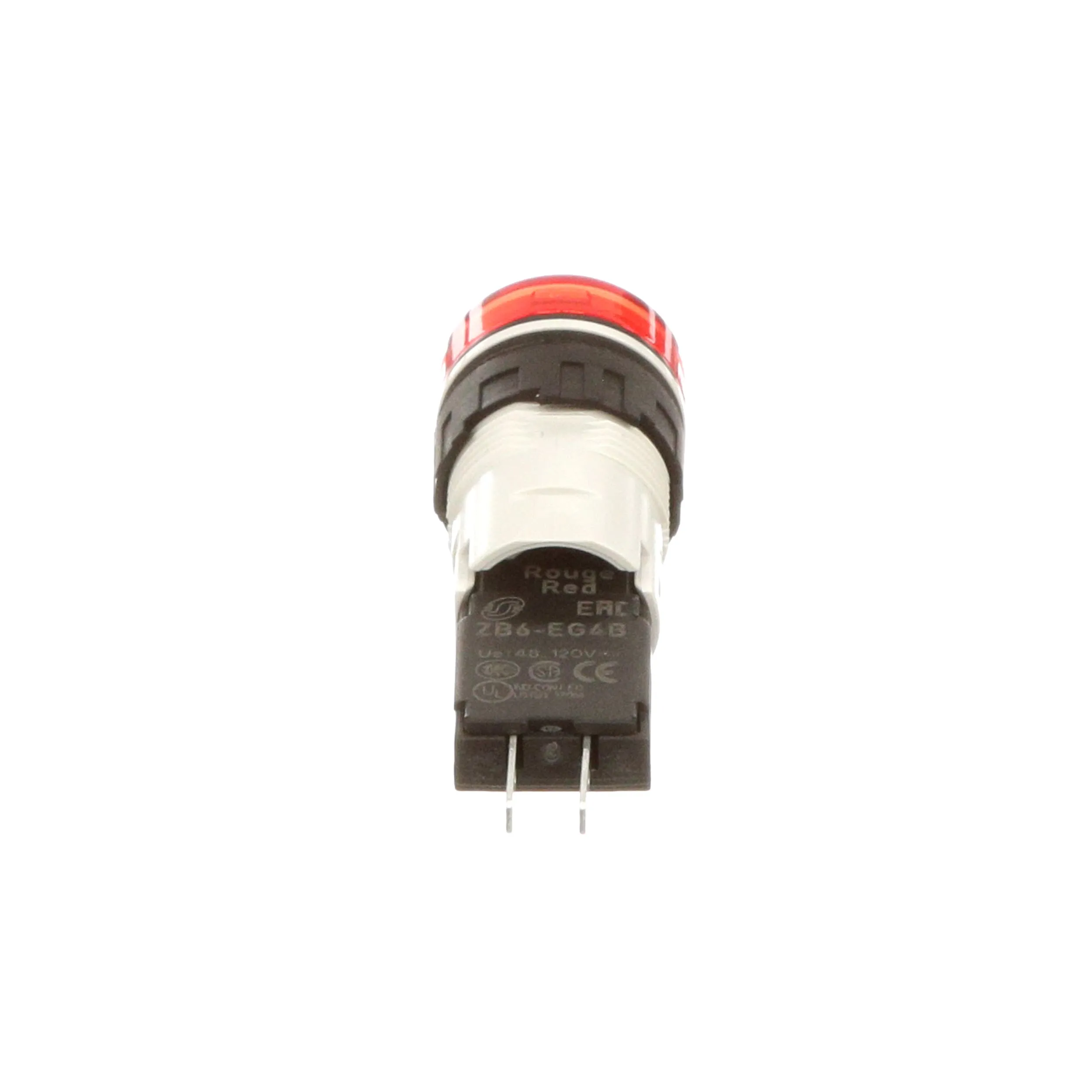

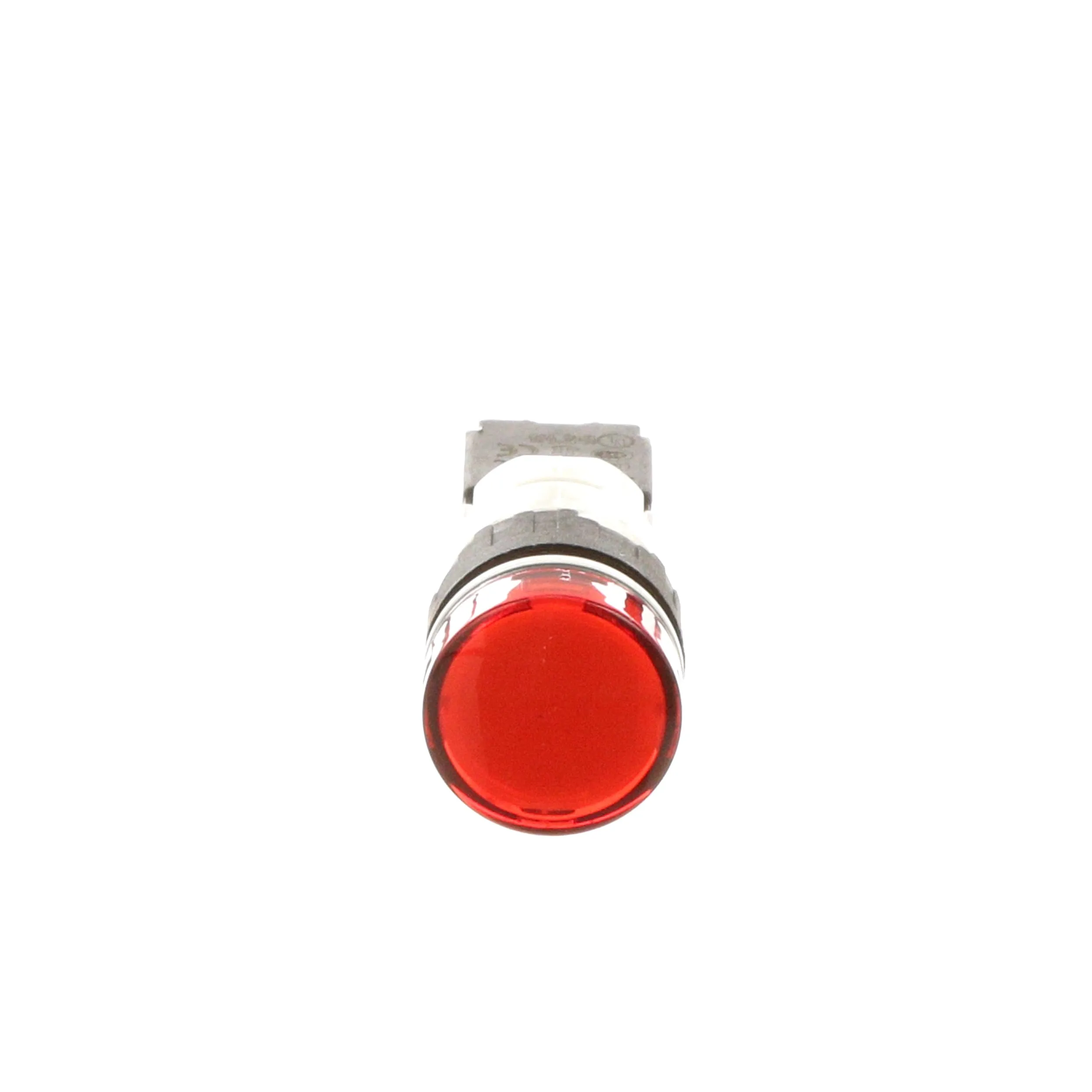

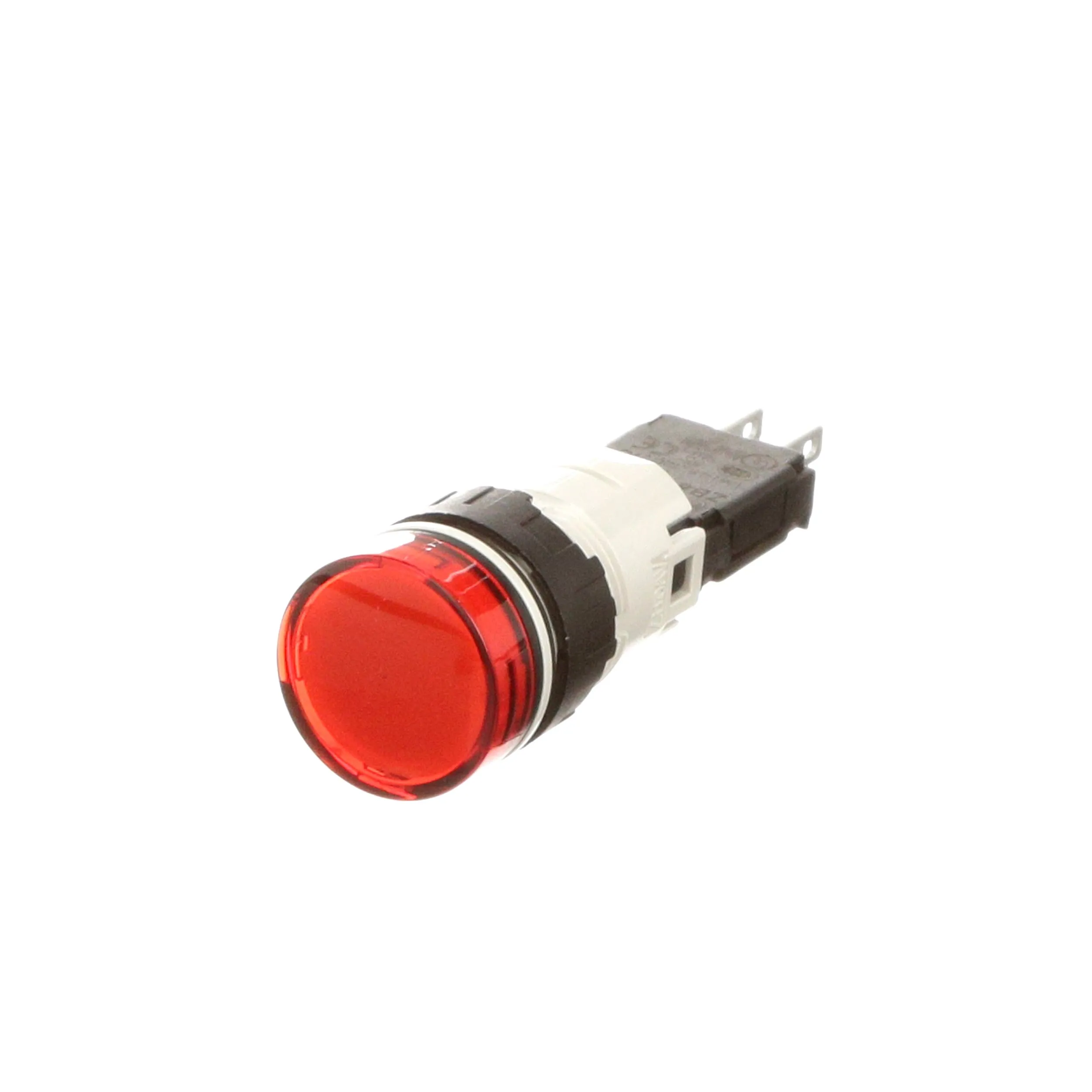

Name: Schneider Electric XB6AV4GB
SKU: 405148

Product Details ＋

Product Attribute	Attribute Value
Color	Red
Current Rating	15 mA
IP Rating	IP65
Lamp Type	LED
Lens Style	Round
Mounting Hole Size	16 mm
Product Header	LED Pilot Light
Series
Special Features	Water Tight, Dust Tight, Corrosion Resistant Enclosure
Standards	NEMA 4, 4X, 12 Rating, CSA Certified (LR44087 Class 321103), CE Marked, UL Listed (E164353 CCN NKCR)
Supply Voltage	120 VAC
Termination	Solder
Type	Pilot Light
UPC Code	785901433248
Voltage, Operating	120 VAC

Overview

Schneider Harmony® XB6 Series — Control & Signaling Units | Φ 16 mm Monolithic Plastic Pushbuttons & Pilot Lights:

The Harmony XB6 range of Φ 16 mm plastic pushbuttons, switches, and pilot lights offers modular and monolithic designs that provide flexibility and simplicity of setup in industrial and commercial applications.

This range includes:

Spring-return pushbutton switches

Illuminated pushbuttons and pilot lights with “Protected LED"

Mushroom-head emergency stop buttons with snap-action locking

Selector switches

A wide range of accessories to fit your needs

Features:

Circular, square, or rectangular heads

Compact size, adaptable for applications where the surface area is restricted

A choice of modular or monolithic design provides flexibility and simplicity of setup

IP65 protection enables XB6 to be used in many types of applications

Solder tab connections (compatible with Faston connection for contact function) or pins for printed circuit board connection

Conformity with IEC, UL, CSA, and CCC standards, as well as CE marking

Up to IP65 protection rating
