Description

Tracking things down with the RePhone Geo Kit!

The combination of and is what makes RePhone Geo Kit brilliant. The kit can fulfill your GPS based project easily and excellently. It allows you to obtain the real-time geographic position, altitude, travelling speed and time information at any time, and all-weather conditions, through GSM network (SMS). Also as a bonus, the Xadow GSM Breakout can provides you more possibilities hacking electronics.

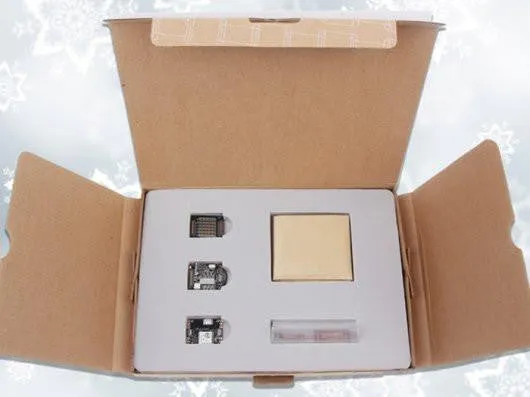

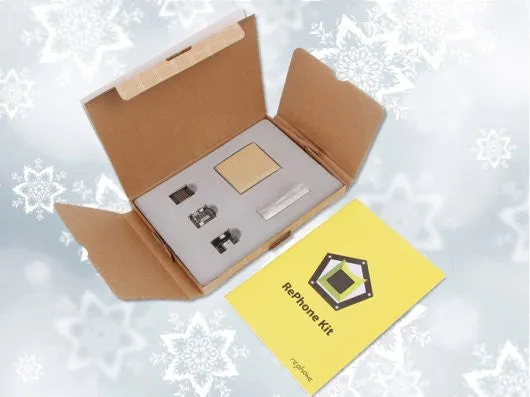

Include:

• Xadow GSM BLE * 1
• Xadow GPS v2 * 1
• Xadow GSM Breakout * 1
• FPC Cable 35 PIN * 2
• FPC Cable 11 PIN * 2
• Battery 520mAh * 1
• User Guide * 1

Features

• Slim and small modules
• Powered by Xadow GSM BLE
• High sensitivity
• Low power consumption
• Various rich-featured add-on modules for function extension
• Stackable, chainable and sewable with other Xadow Modules

Specification

Core Module:

Xadow GSM BLE

• Microcontroller: MT2502
• MCU Core: 32-bit ARM7EJ-STM RISC processor
• RAM: 4MB
• Flash Memory: 16MB
• Power Supply: 3.3 – 4.2V
• Power Consumption: 20mW/30mW/52mW @ standby(no radio)/standby(GSM)/standby(BT)
• Quad-band: 850/900/1800/1900 MHz
• GPRS: Class 12 modem
• Clock Speed: 260 MHz
• Connector: 35 PIN Connector & 11 PIN Connector for Xadow, SMD Female JST battery connector
• Interfaces: External ports for LCD, camera, I2C, SPI, UART, and GPIOs etc.
• Dimension: 25.37mm X 20.30mm / 1’’ X 0.8’’

Documents

Please visit our page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our .
