Product Details ＋

Type: Portable
Inputs: USB Type-B
Outputs: RCA
PCM Sampling Frequencies: 176.4 kHz
PCM Sampling Frequencies: 192 kHz
PCM Sampling Frequencies: 88.2 kHz
PCM Sampling Frequencies: 48 kHz
PCM Sampling Frequencies: 44.1 kHz
PCM Sampling Frequencies: 705.6 kHz
PCM Sampling Frequencies: 352.8 kHz
PCM Sampling Frequencies: 96 kHz
PCM Sampling Frequencies: 768 kHz
PCM Sampling Frequencies: 384 kHz
PCM Word Length: 24-bit
PCM Word Length: 16-bit
PCM Word Length: 32-bit
DSD Sampling Frequencies: 2.8224 MHz (DSD64)
DSD Sampling Frequencies: 22.5792 MHz (DSD512)
DSD Sampling Frequencies: 5.6448 MHz (DSD128)
DSD Sampling Frequencies: 11.2896 MHz (DSD256)
Model Number: X-SPDIF 2
Brand Name: MATRIX

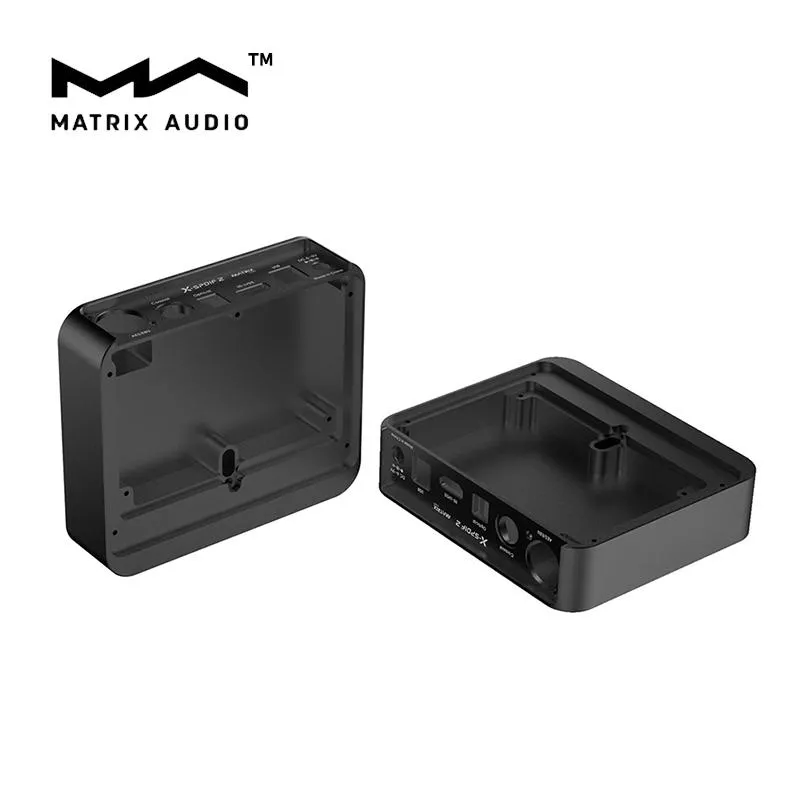

Material: Aluminum alloy

---SpecificationsSplit---

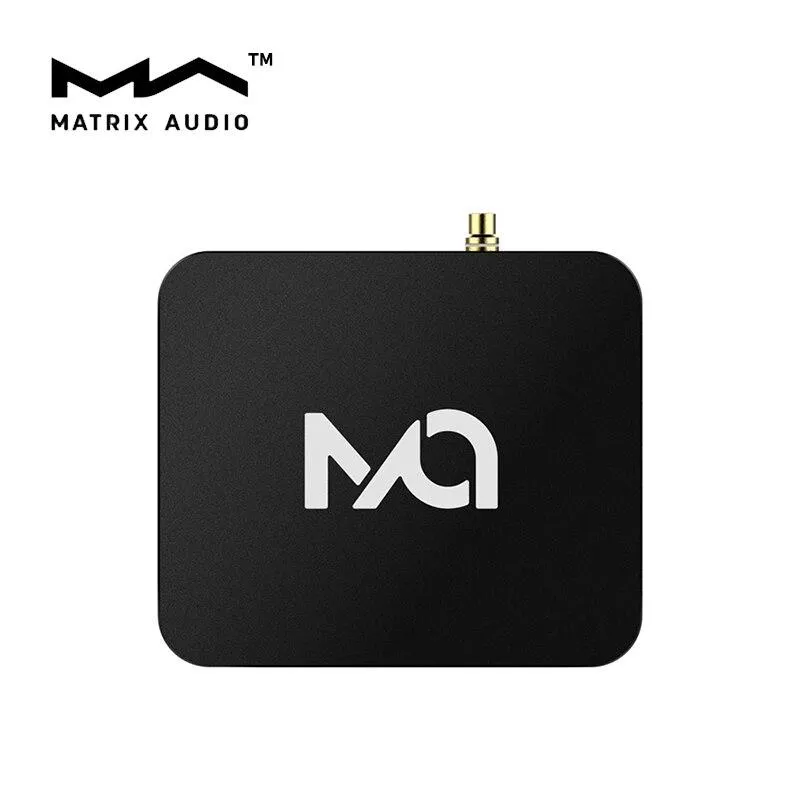

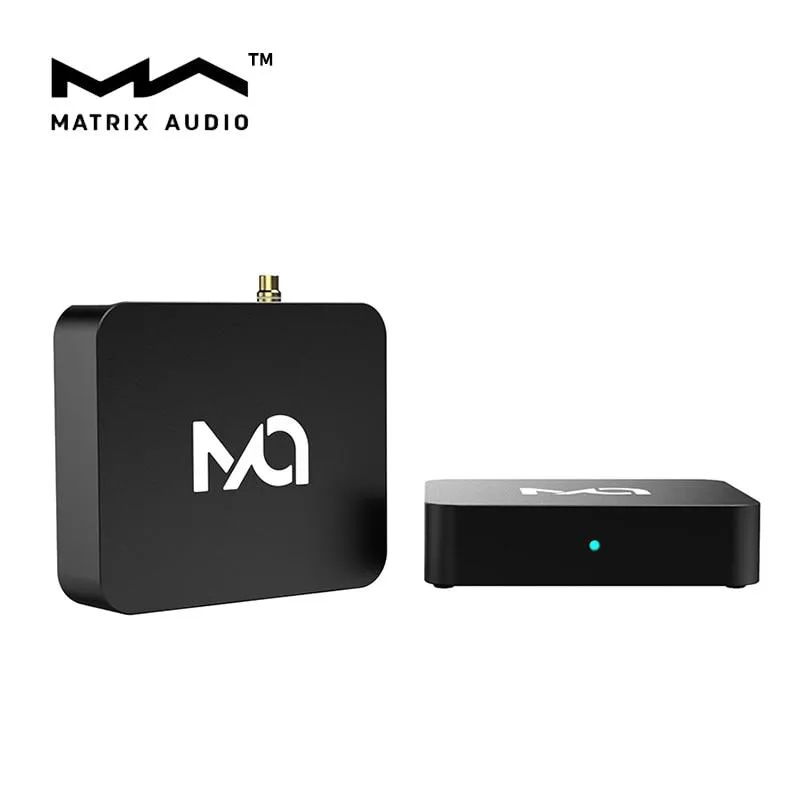

MATRIX X-SPDIF 2 32Bit/768kHz DSD512 Hifi Audio USB Interface

Supported Sample Rate

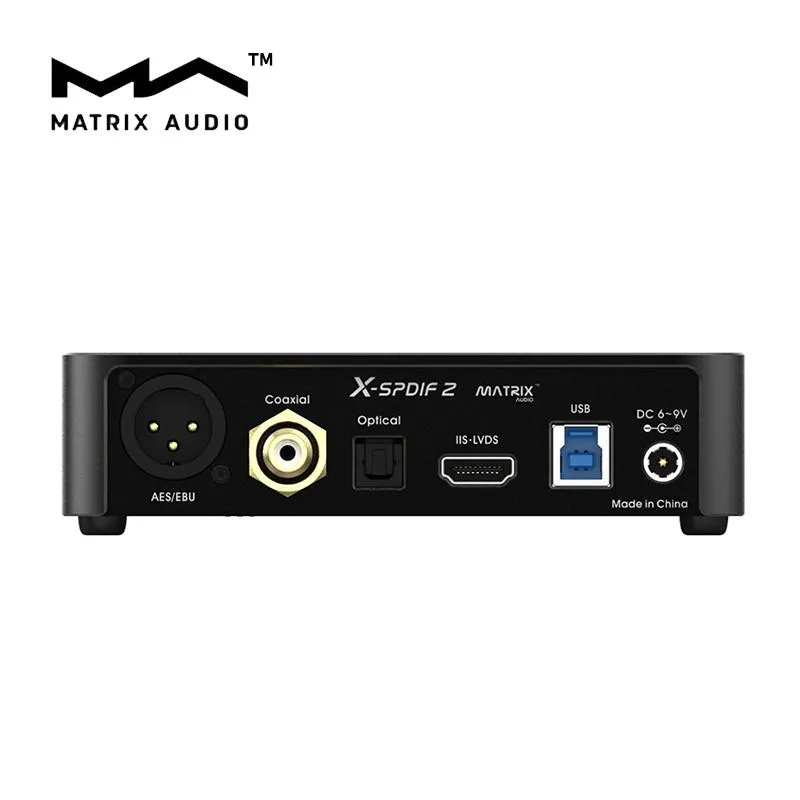

Optical/Coaxial/AES:PCM 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHzDSD64(DoP)

PCM 16-32Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHzDSD64/128/256/(DoP) DSD64/128/256/512(Native)

System Support

Windows7/8/8.1/10 system needs to install the supplied driver.

Mac OS X10.6.4 or above without installing the driver.

Most Android devices can be used via OTG cable.

The iOS devices can be used via Lightning to USB Camera Kit.

Power

Name: MATRIX X-SPDIF 2 32Bit/768kHz DSD512 Hifi Audio USB Interface
SKU: 701654

Power Supply Specs:

USB bus power supply: 5V/500mA

External power supply: DC 6~9V，≥800mA

Power supply port: outer diameter 5.5mm; inner diameter 2.1mm ( for inner, - for outer)

NOTE:Do not connect to the power supply with a voltage above 9V, or will cause damage.It will auto disconnect USB bus supply after connected to the external power supply.It needs to connect to the external power supply when using mobile phone or pad which USB port with low current output.

Dimension:133mm×142mm×38mm(L×W×H, including protruding parts)

Weight:1.1KG
