Lutron Maestro 0-10 V Dimmer Sensors are lighting controls with passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied.

Features:

• Coordinating Claro wallplate available- sold separately

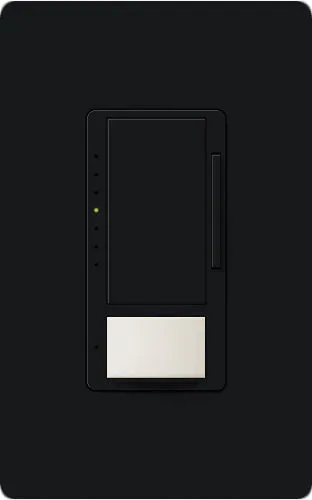

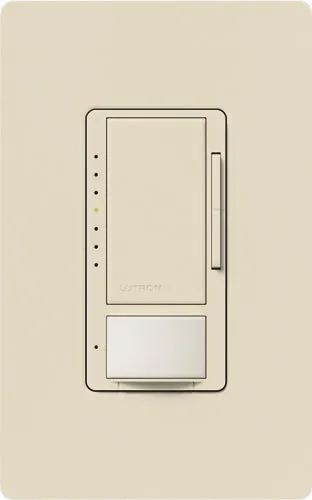

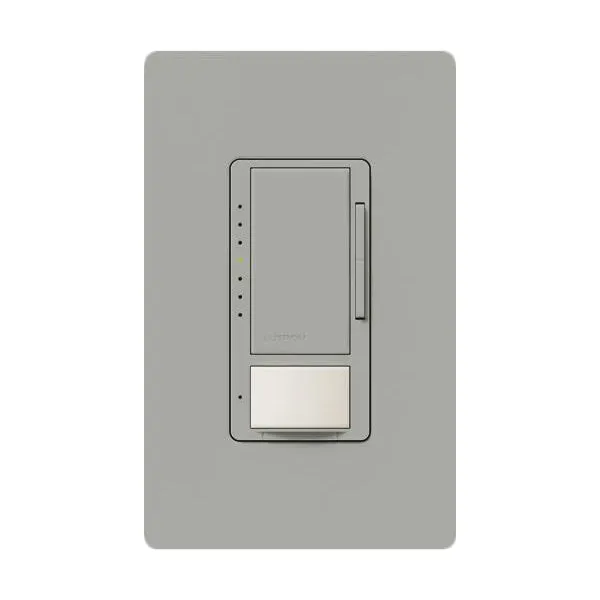

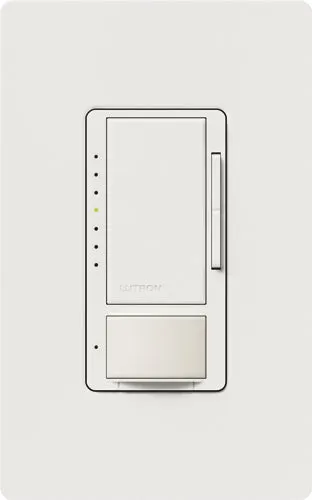

• Colors (Gloss Finishes): White, Light Almond, Almond, Ivory, Gray, Brown, or Black
• Type: Occupancy/Vacancy
• Type: Single Pole / Multi-Location
• Voltage: 120V-277V
• Capacity: 8A electronic fluorescent ballasts or LED driver

• Passive infrared motion detection with exclusive Lutron XCTTM Technology for fine motion detection
• 180° sensor field-of-view
• Up to 30 ft x 30 ft major motion coverage and 20 ft x 20 ft minor motion coverage
• Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
• Vacancy version available to meet CA Title 24 requirements
• Adjustable timeout (1, 5, 15, or 30 minutes)
• Adjustable settings for auto-on light level (occupied level): 100%, 50%, last light level, or locked preset light level
• Adjustable sensitivity level: High, Med, Low, Min
• Off warning fades lights to off over a period of 10 seconds
