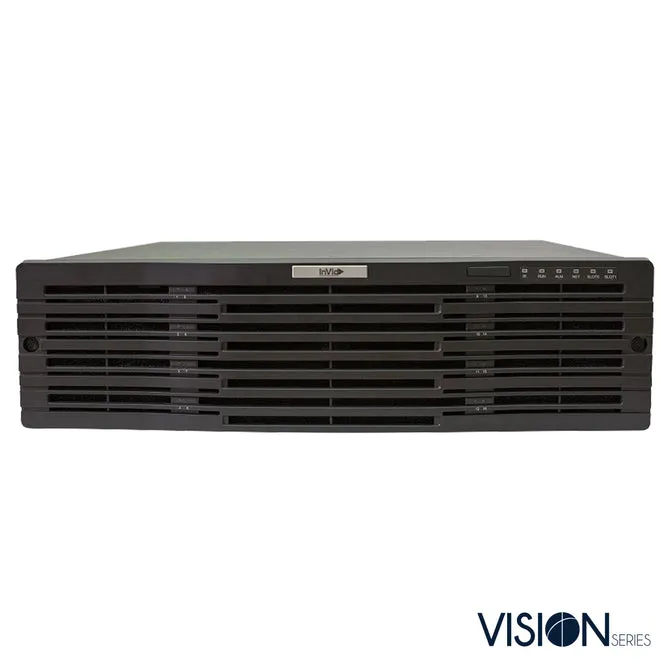

64 Ch NVR, 384 Mbps, (4) NIC Cards 16 HD Bays, 4K, With Cloud Upgrade
Features
- 64 Channel IP Camera Input
- Up to 12 Megapixel Resolution Recording
- 384 Mbs Bit Rate Input
- Supports up to 16 channel simultaneous playback
- Works with ONVIF or other supported IP cameras
- Local HDMI main monitor output with 4K Support
- Local VGA main monitor output up to 1080p
- P2P Vision Stream Connect for Networking
- Smart Analytic Support/8ch SIP Max
- Multiple video search options including Smart Search for quick retrieval of footage.
- H.265/H.264 video compression
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform
- Free MAC client software to easily manage your system from your Apple computer
Model |
VN2A-64 |
Video/Audio Input |
|
|
IP Video Input |
64-ch |
|
Two-way Audio Input |
1-ch, BNC |
Network |
|
|
Incoming Bandwidth |
384Mbps |
|
Outgoing Bandwidth |
384Mbps |
|
Remote Users |
128 users or 1,024 channels |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output |
|
|
HDMI/VGA Output |
VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI1: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, BNC |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
Decoding |
|
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live View/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
Hard Disk |
|
|
SATA |
16 SATA interfaces |
|
Capacity |
up to 18TB WD & 20TB Seagate |
|
eSATA |
1 eSATA interface, max, single drive, 10TB, for Archiving only |
|
miniSAS |
2 miniSAS ports |
Smart |
|
|
VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
|
VCA Search |
Face search, Behavior search |
|
Statistical Analysis |
People Counting |
Disk Array |
|
|
Array Type |
RAID 0/1/5/6/10/50/60 |
External Interface |
|
|
Network Interface |
4 RJ-45 10M/100M/1000M adaptive Ethernet Interface, 2 1000M SFP Ethernet Interface |
|
Serial Interface |
1 x RS232, 1 x RS485 |
|
USB Interface |
Rear panel: 4 x USB3.0 |
|
Alarm In |
24-ch |
|
Alarm Out |
8-ch |
|
Decoding Card |
Option to use INVID-DC5601 (4ch HDMI Output) |
|
Power Output |
12V |
General |
|
|
Power Supply |
100 ~ 240V AC, Power Consumption: ≤ 50 W( without HDD ) |
|
Working Environment |
14°F ~ 131°F ( -10°C ~ 55°C ), Humidity ≤ 90% RH (non-condensing) |
|
Chassis |
19-inch rack-mounted 3U chassis |
|
Dimensions |
18.8”× 19.0” ×5.1” (482mm ×477mm × 131mm) |
|
Weight ( without HDD ) |
22.05 lb ( ≤ 10 Kg ) |
|
Certification |
UL |
