Product Details
＋
Description

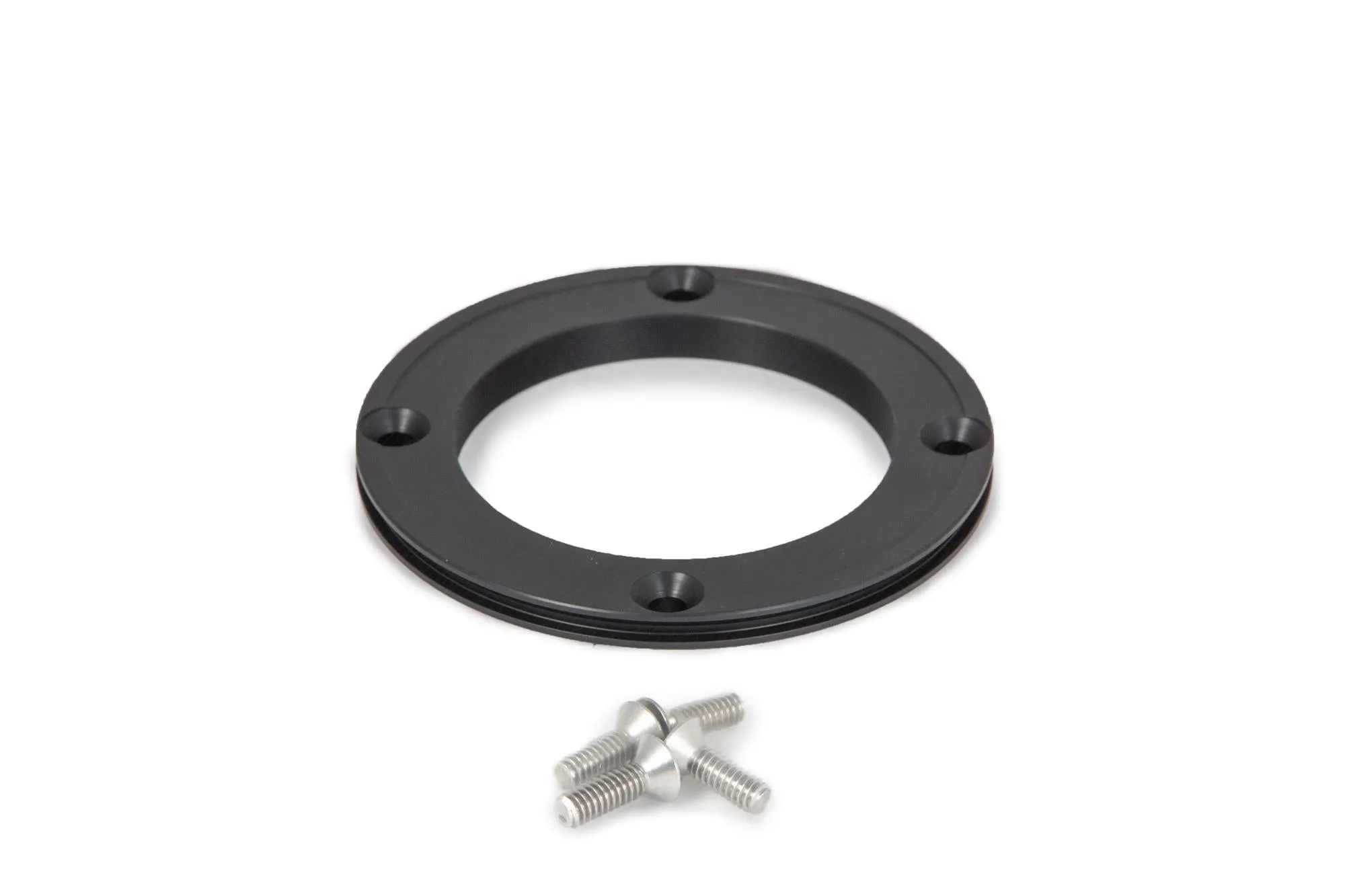

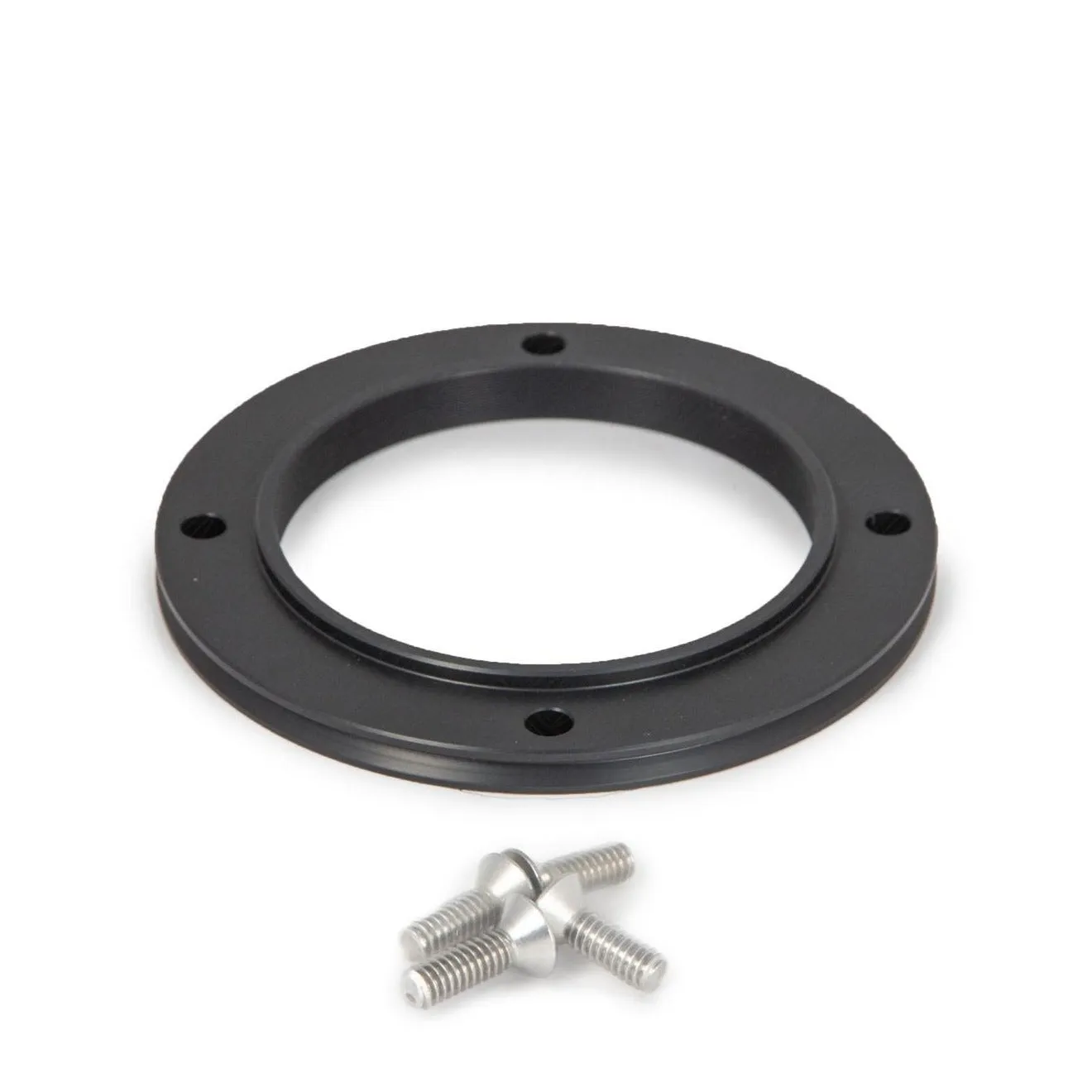

This adapter is used to mount the (#2451300) to the PlaneWave CDK 14/17/20/24" with 3.5" Hedrick focuser.
A variety of adaptations are possible. The IMP85 is delivered without adapters. A variety of telescope-side and camera-side adapters are available from stock. For custom applications, we provide the design for the flange on request.
- Telescope adapter for Hedrick focuser 3.5" for PlaneWave CDK 14/17/20/24" to the Instrument Multi Port IMP85 (#2451300, € 7500,-)
- Designed and manufactured in Germany
- Connections on camera side: 120 x 7.5 mm dovetail
- Black Anodized
- Optical Length: 0.5 mm
- Internal and external diameter: D120a/ D82,5i
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2451310 |
| EAN CODE | 4047825044556 |
| OPTICAL LENGTH (MM) | 0,5 mm |
| BACK FOCUS USAGE | Port 1: 90 mm, Port 2: 110.5 mm, Port 3: 110.5 mm |
| OPTIONAL ACCESSORIES | Available Telescope-Adapters Hedrick Focuser, IR90, Alluna, GO1, AZ5000 and various others; proper adapters for various cameras are available on demand. |
| INCLUDED ACCESSORIES | 3m Ethernet cable, 12V power supply (US, UK and EU adapter included), six M5 set srews |
| OUTER DIAMETER | D82,5i |
| INNER CONNECTION (LENS SIDED) | Dovetail ring |
| CAMERA CONNECTION | Port1: 120 x 7,5mm dovtail mount | Port 2 and 3: M68x1 female |
| COMPATIBLE BRANDS | Baader Planetarium |
