Product Details
＋
Gigabit Edge Switch

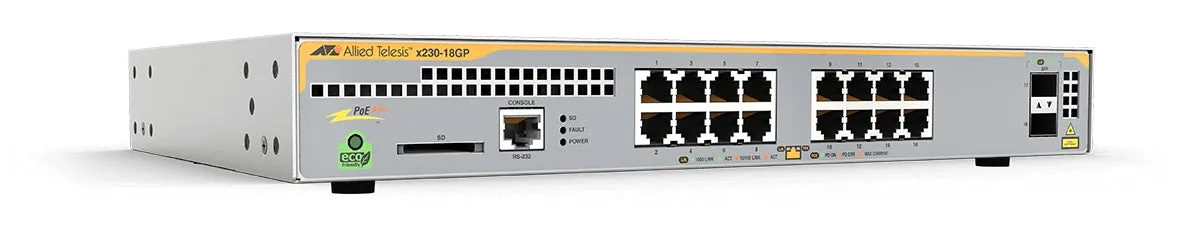

The Allied Telesis x230-18GP features 16 x 10/100/1000T PoE ports with 2 SFP Gigabit uplink ports. A full feature-set with Power over Ethernet Plus (PoE ) makes it ideal for applications at the network edge, supporting the growth of wireless networking and digital video surveillance.
The Allied Telesis x230-18GP features 16 x 10/100/1000T PoE ports with 2 SFP Gigabit uplink ports. A full feature-set with Power over Ethernet Plus (PoE ) makes it ideal for applications at the network edge, supporting the growth of wireless networking and digital video surveillance.
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | No |
| Performance | |
| Stackable | Yes |
| Noise level | 34 dB |
| Internal memory | 256 MB |
| Power | |
| Power connector | DC-in jack |
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 21 W |
| Technical details | |
| Product colour | Grey |
| Stackable | Yes |
| Noise level | 34 dB |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Power connector | DC-in jack |
| Data transmission | |
| Throughput | 26.8 Mpps |
| MAC address table | 16000 entries |
| Switching capacity | 36 Gbit/s |
| Security | |
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Memory | |
| Internal memory | 256 MB |
| Design | |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE ) ports quantity | 16 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 81 BTU/h |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 3 kg |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4.35 kg |
