Product Details
＋

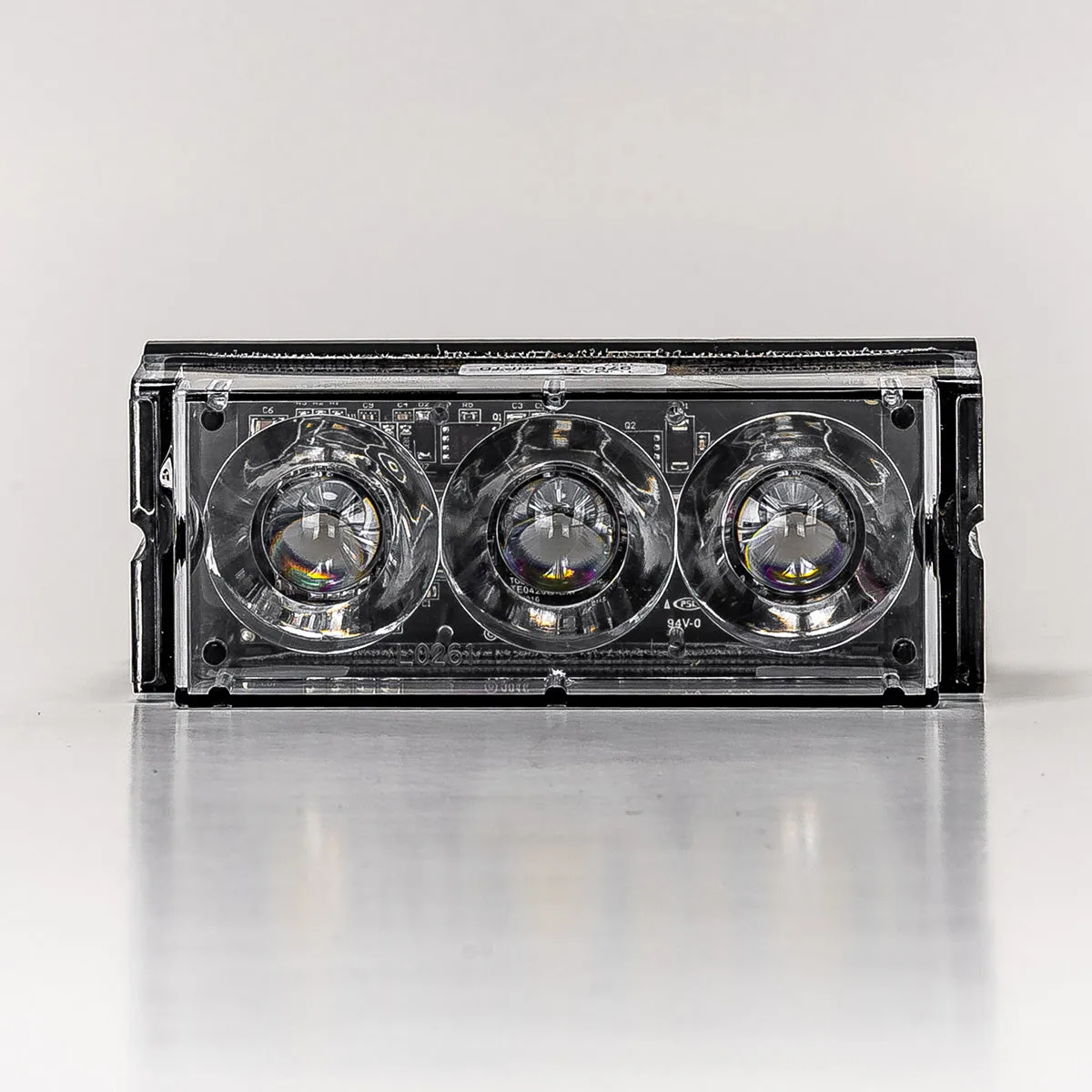

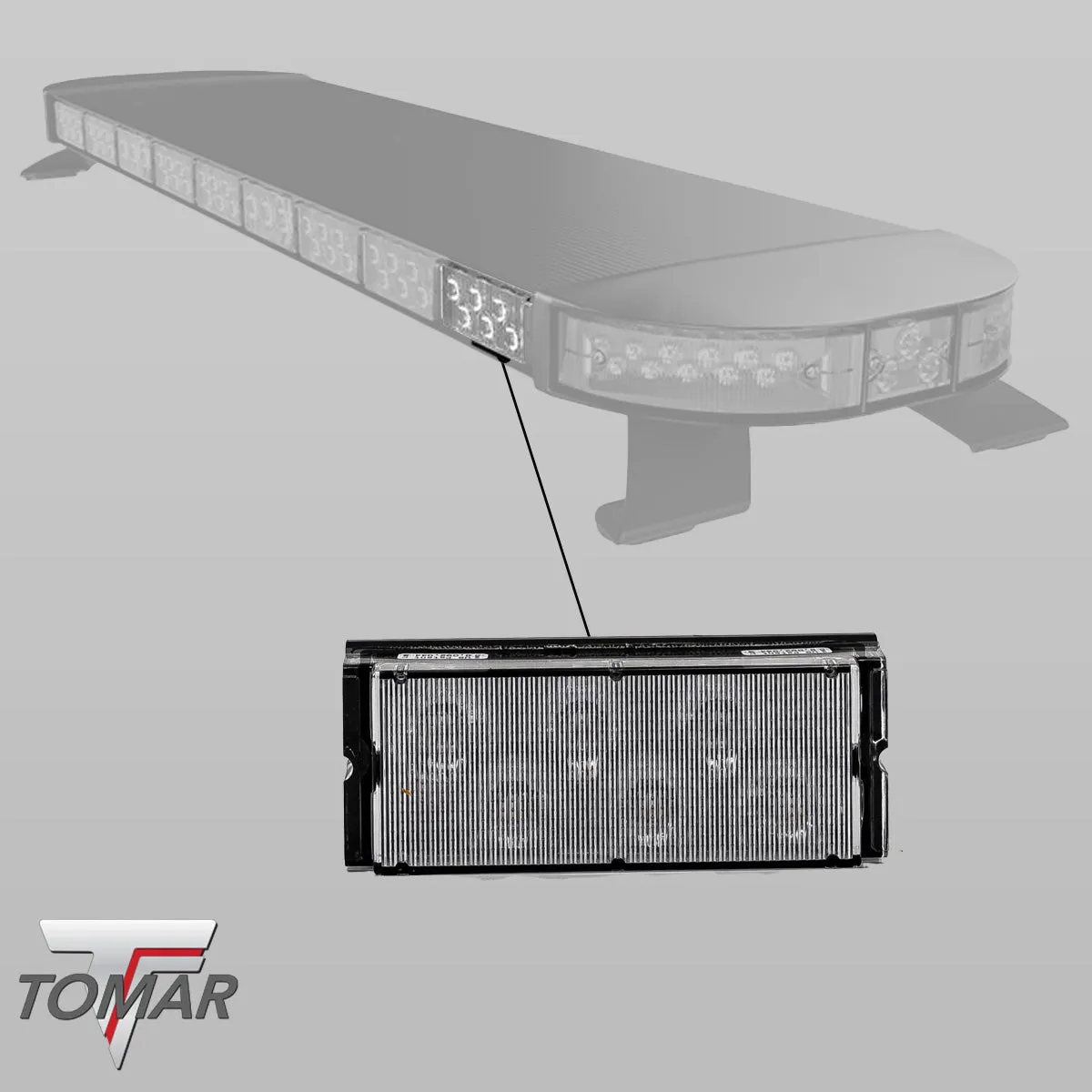

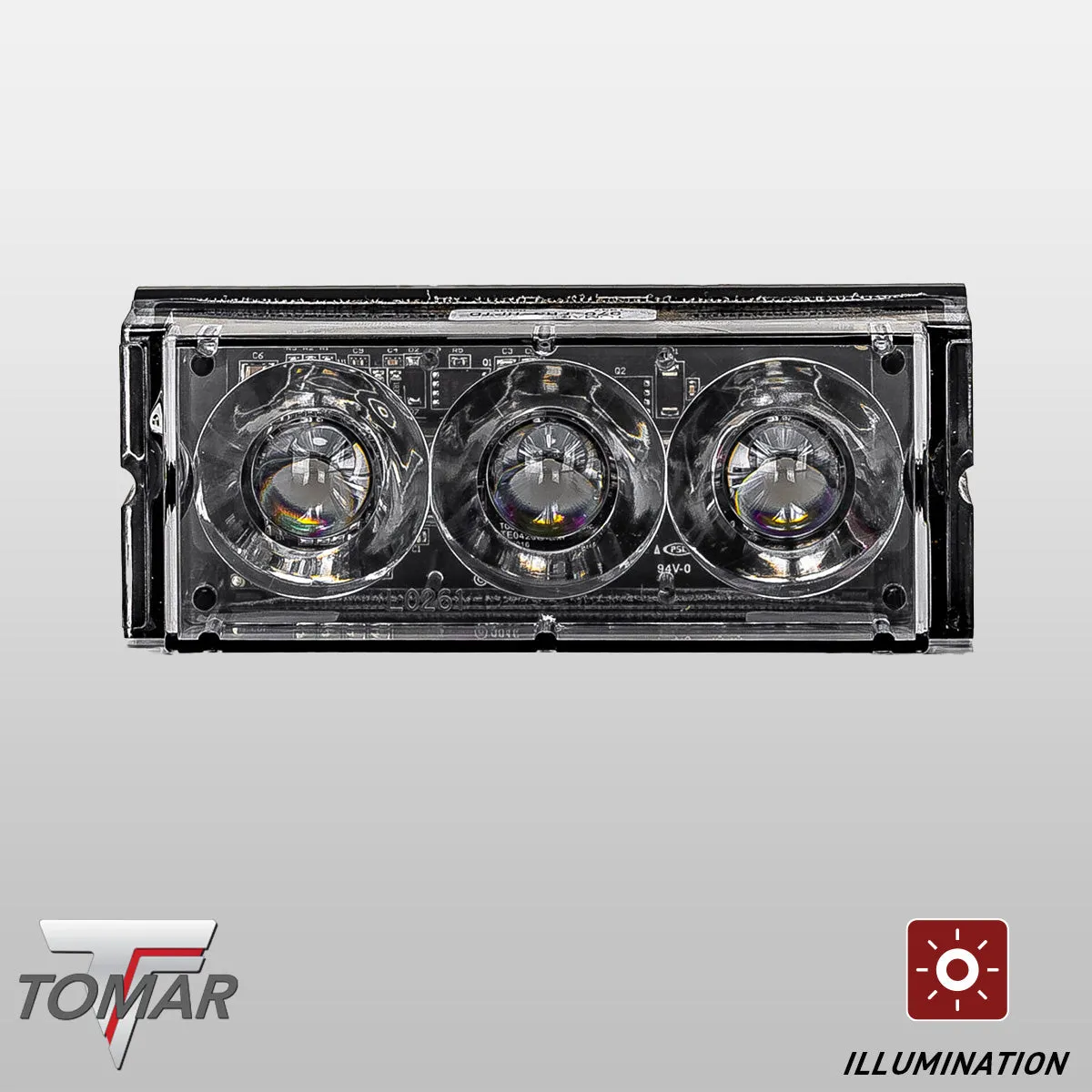

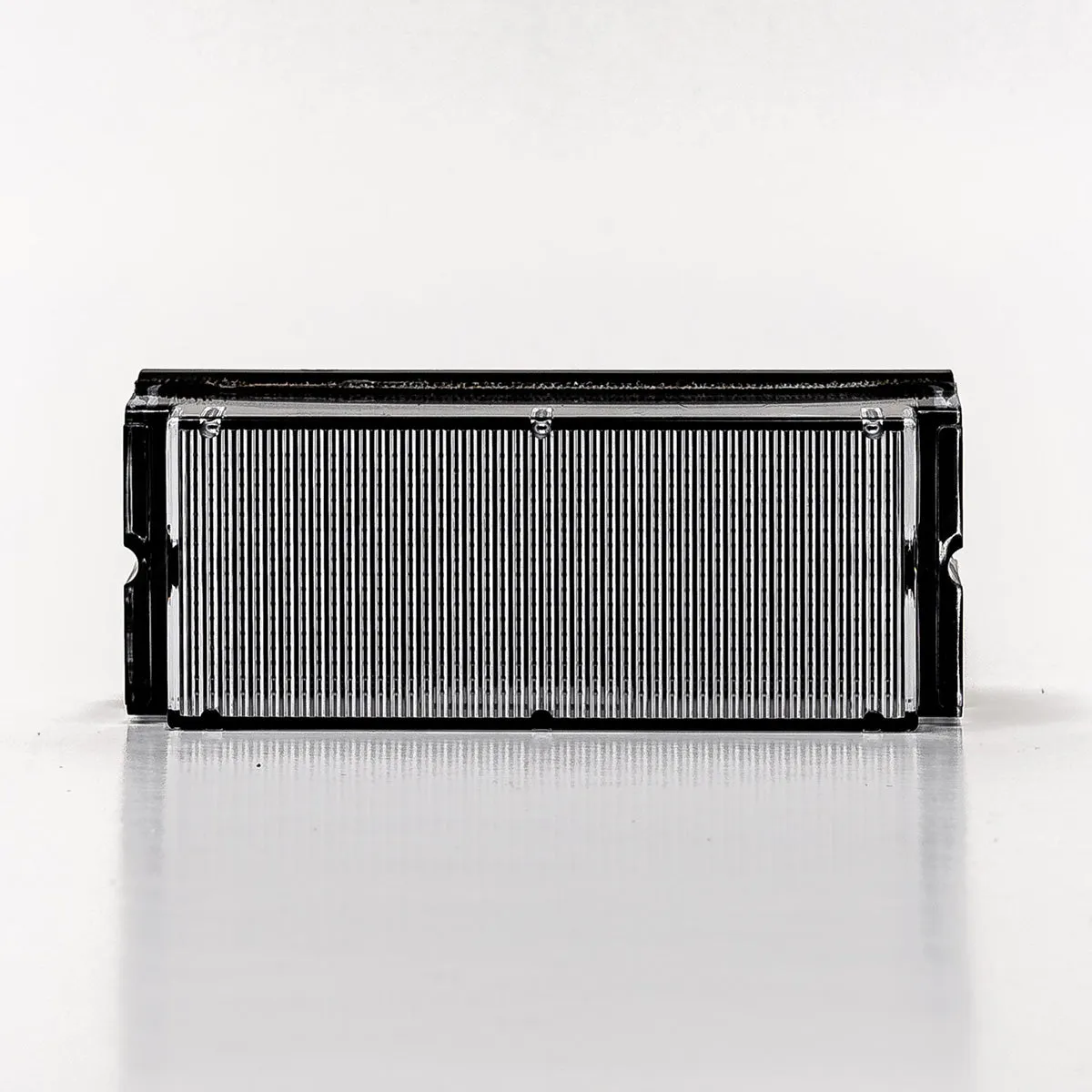

These front/rear scene LED replacement modules for the 970 Scorpion and Black Widow light bars are direct replacements to your existing LED lamps.
How do I know if I am selecting the correct replacement module?
By using the product catalog number located on the decal on the top or bottom of your lamp, you can select the exact lamp originally fitted to your bar for replacement.
Key Features
- Direct replacement to existing module
- 3 High-power, high-intensity LED's
- TOMAR's Clear Vision Optics™
- Optically-clear Lexan lens
- Waterproof quick-connectors
- TOMAR T-Seal™ linear-vibration waterproof seal
- IP67 and IP69K intrusion protection against water and dust
Scene Light Options
- Spot - Typically used as "Take-Down" Lights, these provide an 8.5 degree focused beam of light toward the front or rear, on a plane parallel with the lightbar.
- Flood -Typically used to send light over a wide area at distances further than next-to-the-vehicle. These modules provide approximately 85 degrees of white light spread on a plane parallel with the lightbar.
- Composite - AA mixture of spot and flood optics, for a flood-effect with a center-focused 'hot-spot.' This modules also directs light on a plane parallel with the lightbar.
- Tilt-Down Flood - Unlike the above modules, this Flood modules has built-in tilt-down optics which angle the light from the lightbar down at 13 degrees, while simultaneously providing an 85 degree wide spread. These modules are typically used as work-lights for near-vehicle illumination.
- Tilt-Down Spot - This Spot modules has built-in tilt-down optics which angle the light from the lightbar down at 13 degrees, while simultaneously providing an 8.5 degree wide spread.
