Features:

• Complete Measurement System: Meter and Dual Electric and Magnetic Field Probe
• Covers Most Industrial Equipment
• Extremely Easy to Use
• Low Cost, Compact, and Lightweight
• High Overload Tolerance
• RMS Detection
• Frequency Range Bands: 10 to 42 MHz; Three: 10-20 MHz, 20-35 MHz, & 35-42 MHz
• Measurement Range: Single Range, 0.05 to 50.0 mW/cm2; Bar Graph Auto Ranges or; Select One of Three 10 dB (10:1) Ranges
• Controls: 8 Key Membrane Keypad
• Zeroing: One Touch Auto Zero
• Units: mW/cm2, W/m2, V/m, A/m
• Audible Alarm: Probe Overload Warning
• Isotropic Error (max): ± 1.00 dB
• Ellipse Ratio (max): ± 0.75 dB
• Calibration Accuracy: ±0.5 dB
• Probe Overload: >50 W/cm2

Display

• Type: Custom Liquid Crystal Display
• Digital Output: 3½ Digits, .44 inch (11 mm) Character Height
• Bar Graph: 18 Segments
• Units: 18 Segments

Applications

• RF or High Frequency Heat Sealers, Vinyl Welders
• Semiconductor Process Equipment: Etchers, Sputterers, Ashers, and Glass Deposition
• RF Induction Heating
• Dielectric Dryers and Heaters
• Plasma Generation Systems

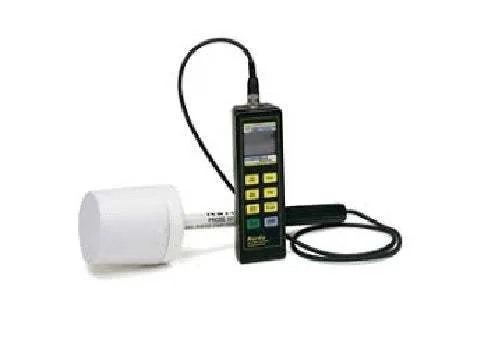

The Narda 8513 combines an unprecedented ease of operation with powerful measurement capabilities. It provides the industrial plant manager and safety professional with an accurate and inexpensive solution for proving compliance with regulations that cover exposure to RF radiation. The 8513 provides a complete measurement system comprised of an extremely easy to operate meter and a probe that contains sensors to measure both the electric (E) and magnetic (H) field components of an electromagnetic wave.

The Narda 8513 includes a Shielded Storage Case. The heavy duty storage case is foam-lined and shielded to protect the meter and the probe in storage and in transit. It is approximately 17.6 in X 12.6 in x 5.0 in (44.7 cm x 32.0 cm x 12.7 cm).
